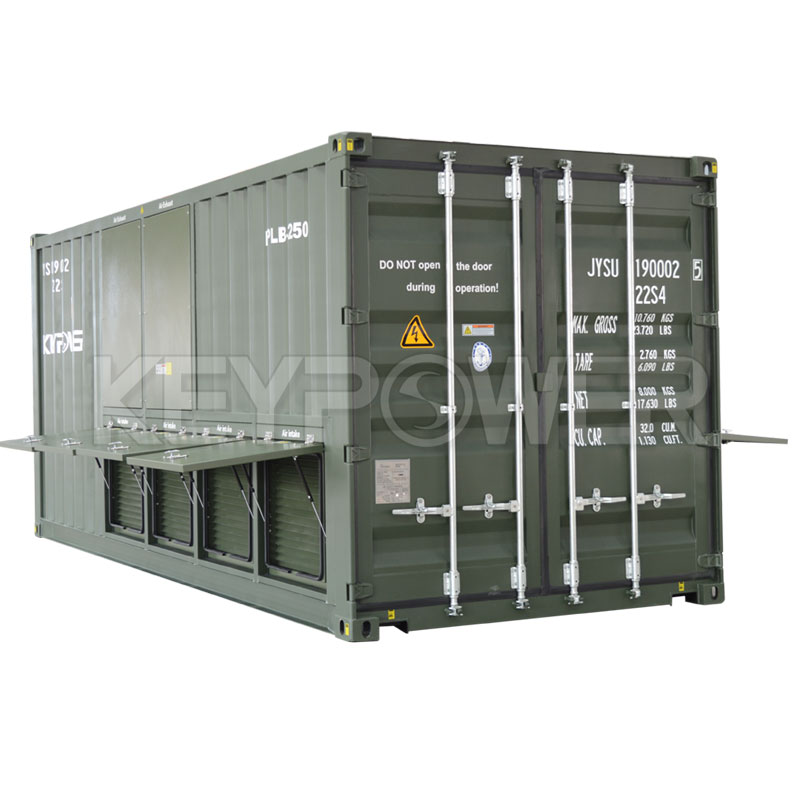

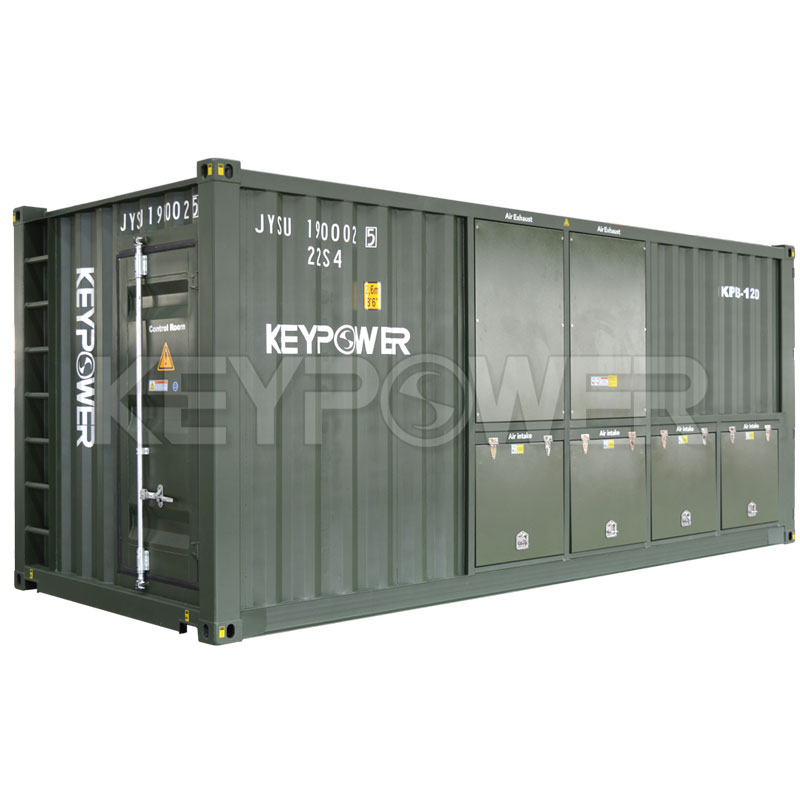

KEYPOWER 1250 kVA Resistive and Inductive Load Bank with Generator tester
Load bank is a simulating load test equipment used for generators, UPS, battery banks etc power systems load test.
  • Detail
  • Order


KEYPOWER generator tester specifications

Voltage (V)10.0~500.0V±   (0.4% reading+0.1%range)0.1V600V
Current (A)0.030~5.000A ±   (0.4% reading+0.1%range)0.001A6A
powerAccording   to volt range &  current rangePower   factor=1.0
≥200W 1W
± (0.4% reading+0.1% range)≥2kW 10W
Power factor=0.5<200W 0.1W
± (0.8% reading+0.2% range)
Power factor


Running time
1   minute

99999kWh Power   factor=1.00.001kwh
± (0.4% reading+0.1% range)
Power factor=0.5
± (0.8% reading+0.2% range)
Harmonic analysis (%)2-50   times and total harmonic


100-5000KW Load Bank for Generator Load Test:

1.Premium components

2.Durable and reliable

3.Easy to transport

Load bank is a simulating load test equipment used for

generators, UPS, battery banks etc power systems load test.

1. Resistive type of load, PF = 1.0. Stainless steel sheathed elements manufactured from high grade magnesium oxide.
2Rated testing voltage : AC 3P4W, 110-480V 50/60 Hz. standard, special one on request.
3. Cooling mode: Forced air-cooled, fans mounted on the side of the load bank blow horizontally. Testing power or external utility power supply for fans.
4. Working mode: Load step control
Total testing capacity ranges from 0kw to the max consisting of 10kw, 20kw, 50kw, 100kw load setting switches plus a 0-10kw fine-tuning knob. From 0kw to the max, any load combination is achievable. Load step resolution is 10kw.
5. Load bank features world-famous components to ensure reliable performance and longer service life including:

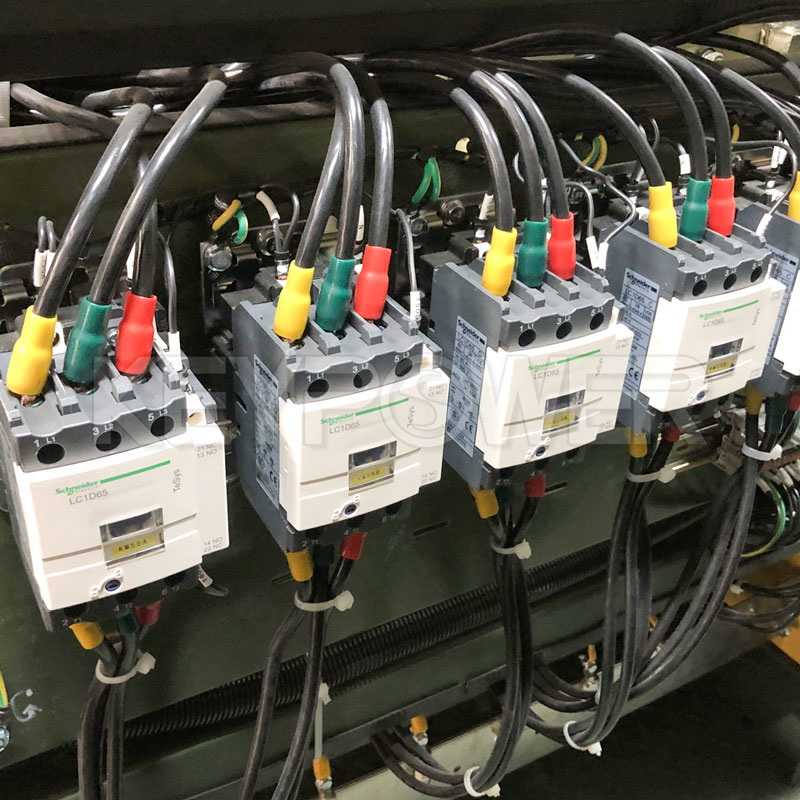

SCHNEIDER contactors.
Siemens switches, knobs and indicators.
ABB Circuit breakers.
OMRON intermediate relays.
PHOENIX terminal blocks.
6.  Parameter measuring accuracy grade: 0.3
7. Load control accuracy: ± 5%.
8. Load bank protections: Over heating protection, cooling fans failure protection and over load protection with alarm.
9. Control mode: Two control modes available:
A)Local manual control;
B)Optional: Manual control via a remote control panel (max control distance is 30m).

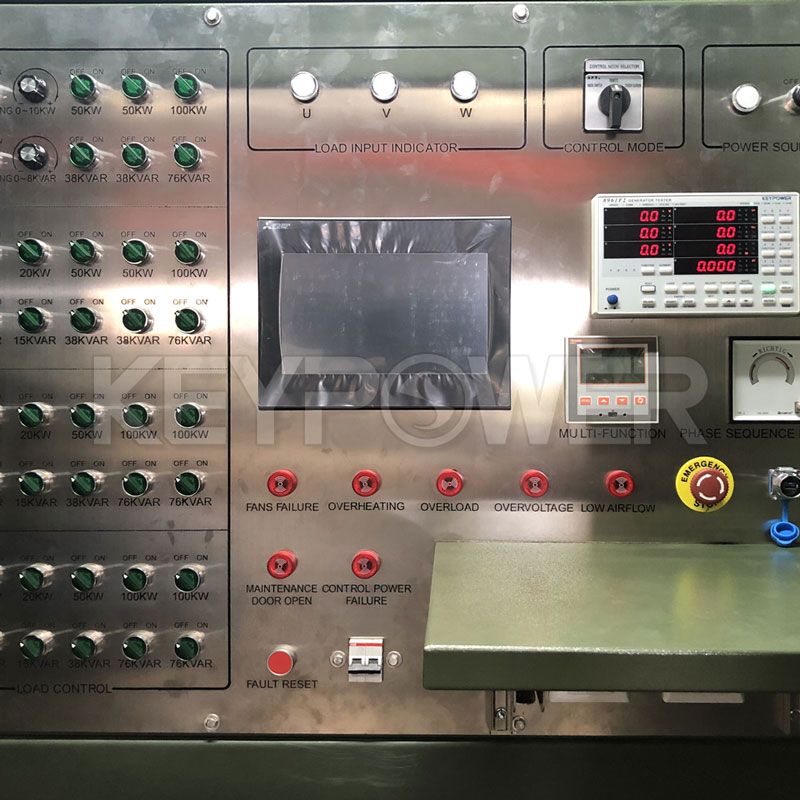

10. Parameter display and measurement:
Control panel contains a LOVATO Multifunction Electricity Meter displaying voltage, current, load power, reactive power, apparent power, power factor, frequency etc.
(Optional: A professional generator tester displays and measures all sorts of steady, dynamic parameters as well as harmonic wave, can be connected to a PC for data recording and test report printing). "
11. Operating environment:
Altitude: ≤ 3000m above sea level. Ambient temp: -10~+50 ℃
Relative humidity: ≤ 80% ventilated environment without explosive or corrosive dust. Not allowed to use in rainy outdoor environment.
